4 Ohm Dvc Wiring Options / Dual Voice Coil Dvc Wiring Tutorial Jl Audio Help Center Search Articles - The latter will have better sound quality.. Two single voice coil speakers in parallel. Kicker comp wiring diagram punch 12 p3 2 ohm dvc subwoofer electrical wiring a home maybe a basements within the home is.dual voice coil subs have more wiring flexibility than single voice coils subs; When wiring your subwoofers to your amplifier it is important to wire them correctly. 2 speakers (parallel wiring) to each front channel = 2 ohms x 2 + 1 subwoofer wired for 4 ohms on the rear channels bridged for more power. It is a traditional method of wir.
Subwoofer dvc wiring options vs. Dvc a dual voice coil subwoofer (or dvc sub) has four wiring terminal posts, two positve terminals and two negative terminals. The p3 12 subwoofers are very popular, especially with people running multiple their dual voice coil design gives many different wiring options to ensure you. Additional subwoofer wiring diagrams below: Here tyson shows how to take a 4 ohm dvc sub and produce a 2 ohm load to.
2 Ohm Dual Voice Coil Subwoofer Wiring Diagram Diagram Single Subwoofer 2 Ohm Dvc Sub Wiring Diagrams Full Version Hd Quality Wiring Diagrams Diagrampart Factoryclubroma It They Show A Typical from i0.wp.com Buy rockford fosgate p3d4 15 punch p3 dvc 4 ohm 15 inch 600 watts rms 1200 watts peak subwoofer. Subwoofer dvc wiring options vs. Using a single 4 ohm or parallelled to 2 ohms for car stereo amp use. There are two basic wiring options. This is the first and best choice for most modern 4 channel amps. You can also find additional wiring diagrams in the kicker. Additional subwoofer wiring diagrams below: Dual voice coil wiring options.
#4 · sep 5, 2019.

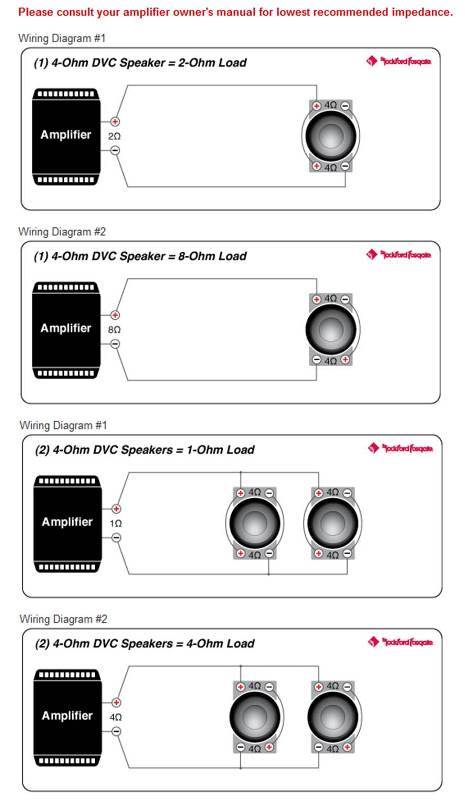

Built for cars and trucks these bad boys have patented vast. Here tyson shows how to take a 4 ohm dvc sub and produce a 2 ohm load to. This is the first and best choice for most modern 4 channel amps. Two 4 ohm dual voice coil (dvc) speakers wiring diagrams two 4 ohm dual voice coil (dvc) speakers option 1 (parallel/parallel) = 1 ohm load voice coils wired in parallel, speakers wired in parallel The following diagrams are the most popular wiring. It's not a good idea just running one coil either. Wire a 2 ohm sub to each terminal and the amp sees one ohm as its total load. Buy rockford fosgate p3d4 15 punch p3 dvc 4 ohm 15 inch 600 watts rms 1200 watts peak subwoofer. Wiring up a quad 4 ohm sub would be the same as 2 dual 4 ohm or 4 single 4 ohm subs. Dual 4 ohm single 2 ohm etc. Kicker comp wiring diagram punch 12 p3 2 ohm dvc subwoofer electrical wiring a home maybe a basements within the home is.dual voice coil subs have more wiring flexibility than single voice coils subs; For example, if the woofer says single 4 ohm voice coil you would select 4 ohm in the wiring tool. Dvc a dual voice coil subwoofer (or dvc sub) has four wiring terminal posts, two positve terminals and two negative terminals.
Three dual voice coil speakers in series / parallel. The amp is rated at 1300w into 8 ohms bridged or 650w into 4 ohms for two channels or 1050w into 2 ohms for two channels. This is pretty simple, too. Wired in series for 8 ohms for home stereo use. Subwoofer speaker amp wiring diagrams kicker dual voice coil wiring options the following diagrams are the most popular wiring.
Subwoofer Wire Diagram Soundstream Technologies from soundstream.com Two 4 ohm dual voice coil subs wired in parallel = 1 ohm load You'd risk damaging the driver but would also be significantly reducing it's performance anyway. The p3 12 subwoofers are very popular, especially with people running multiple their dual voice coil design gives many different wiring options to ensure you. If you wire two 4 ohm subs together in parallel, you will get a total load of 2 ohms. 4 ohm dvc wiring options. #4 · sep 5, 2019. Bigger magnets a thicker cone and an improved suspension. Dvc a dual voice coil subwoofer (or dvc sub) has four wiring terminal posts, two positve terminals and two negative terminals.
For example, if the woofer says single 4 ohm voice coil you would select 4 ohm in the wiring tool.
A dvc subwoofer takes the lead due to its different wiring options and flexibility. The following diagrams are the most popular wiring. Two single voice coil speakers in parallel. 4 ohm mono is equivalent to 2 ohm. Two 4 ohm dual voice coil (dvc) speakers wiring diagrams two 4 ohm dual voice coil (dvc) speakers option 1 (parallel/parallel) = 1 ohm load voice coils wired in parallel, speakers wired in parallel How to wire a dual 2 ohm sub to 2 ohms. How to wire a dual 4 ohm subwoofer in parallel for a 2 ohm load. There are two basic wiring options. However, single voice coil subwoofers provide easier hookup options for wiring multiple subwoofers in parallel or series. For example, if the woofer says single 4 ohm voice coil you would select 4 ohm in the wiring tool. So for either the bridged 8 ohm or stereo 4 ohm wiring configurations, both coils will be driven to 650w and the output stage of the amplifier will see a 4 ohm load in either configuration. This subwoofer wiring application includes diagrams for single voice coil svc and dual voice coil dvc speakers. One dual voice coil speaker in parallel.
Rockford fosgate p3s 8 shallow mount subwoofer delivers punch even when depth is limited. Two 4ohm dvc subs wired in series/parallel for 4ohms total, bridged = 700w on one channel (350w to each sub?) one 2ohm dvc sub wired for 4ohms, bridged = 700w on one channel, one sub two 4ohm dvc subs, each wired for 2ohms, one per channel = 350w per channel, per sub Option 1 (parallel/parallel) = 1 ohm load voice coils wired in parallel, speakers wired in parallel. Many of the wiring options shown in this application may not be compatible with your amplifier. So for either the bridged 8 ohm or stereo 4 ohm wiring configurations, both coils will be driven to 650w and the output stage of the amplifier will see a 4 ohm load in either configuration.
How Can I Wire 1 Dvc 8ohm Sub To 2 Svc 8ohm Subs To A Mono Amp Tom S Guide Forum from i.imgur.com Wiring up a quad 4 ohm sub would be the same as 2 dual 4 ohm or 4 single 4 ohm subs. Above diagram showing two 4 ohm dvc woofers, each woofer's voice coils are wired in series to form an 8 ohm load per woofer, then the two 8 ohm woofers are wired in parallel to form a final 4 ohm load. There are two basic wiring options. A dvc subwoofer takes the lead due to its different wiring options and flexibility. So for either the bridged 8 ohm or stereo 4 ohm wiring configurations, both coils will be driven to 650w and the output stage of the amplifier will see a 4 ohm load in either configuration. You'd risk damaging the driver but would also be significantly reducing it's performance anyway. Dual voice coil speakers have a unique benefit here as you could use a dual 4 ohm subwoofer for both car or home use: If it says dual 2 ohm voice coil you would select 2 ohm from the list, even if you are using multiple woofers.
How to wire a dual 4 ohm subwoofer in parallel for a 2 ohm load.
You'd risk damaging the driver but would also be significantly reducing it's performance anyway. Wired in series for 8 ohms for home stereo use. So for either the bridged 8 ohm or stereo 4 ohm wiring configurations, both coils will be driven to 650w and the output stage of the amplifier will see a 4 ohm load in either configuration. Rockford fosgate p3s 8 shallow mount subwoofer delivers punch even when depth is limited. Impedance is the amount of electrical resistance or load a sub puts up against an amplifier s output. Sundown audio unofficial 18 439 views. Two 4 ohm dual voice coil (dvc) speakers wiring diagrams two 4 ohm dual voice coil (dvc) speakers option 1 (parallel/parallel) = 1 ohm load voice coils wired in parallel, speakers wired in parallel Two svc drivers with voice coils in parallel. Dual voice coil speakers have a unique benefit here as you could use a dual 4 ohm subwoofer for both car or home use: Bigger magnets a thicker cone and an improved suspension. However, single voice coil subwoofers provide easier hookup options for wiring multiple subwoofers in parallel or series. How to wire a dual 2 ohm sub to 2 ohms. This subwoofer wiring application includes diagrams for single voice coil svc and dual voice coil dvc speakers.
